Epoxy Sheets

  • Epoxy sheet
  • Epoxy sheet
  • Epoxy sheet
  • Epoxy sheet
  • Epoxy sheet
  • Epoxy sheet
Epoxy sheetEpoxy sheetEpoxy sheetEpoxy sheetEpoxy sheetEpoxy sheet

Epoxy sheet

  • Stock Color: Light Green, Yellow, Black
  • Thickness: 0.5mm ~ 50mm
  • Size: 1020mmx2020mm
  • Lead time: 3 ~ 5 days
  • Product description: Epoxy sheet
  • INQUIRY
  • - Other sizes  can be cutted, colors according to required application.

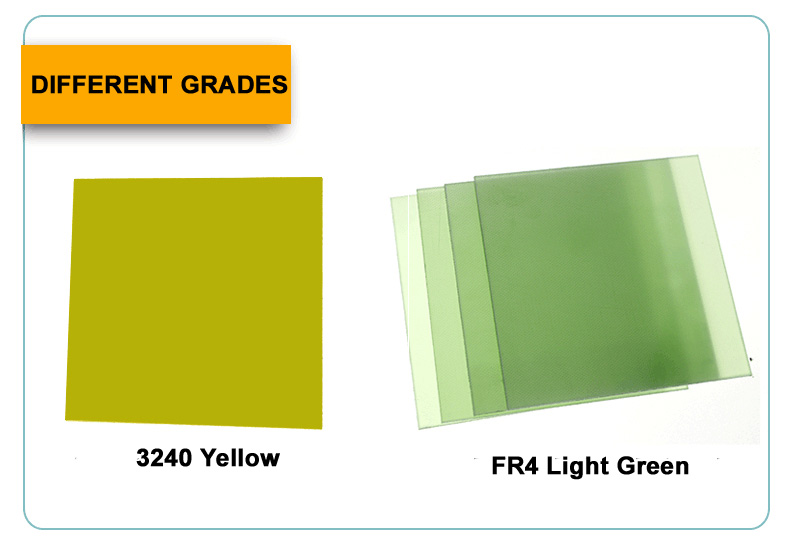

  • - A grade quality ordinary 3240 Yellow Type, FR4 light green Type, Black ESD type



About Epoxy Sheet:

Laminated material in sheets, made from modified non-alkaline glass fabric as a frotifier material and epoxy resin as a binder. In addition to its good mechanical and electro insulating properties. The material is self-extinguishing, classified as inflammable.

China Epoxy glass cloth laminated sheet for magnetic conductivity, with high mechanical strength, heat-resistance, with good magnetic permeability.suitable for making magnetic slot and wedge for motors.


Advantages:

▪        Extremely high mechanical strength

▪        Good dielectric loss properties

▪        Good electric strength properties, both wet and dry.


Key Features:

▪        High mechanical properties, and oil resistance and certain dielectric property.

▪        Thermal rating is 120, and temperature resistance :150 °C

▪        Withstand a variety of chemical solvents and acid erosion


Applications:

▪       Chemical machine parts

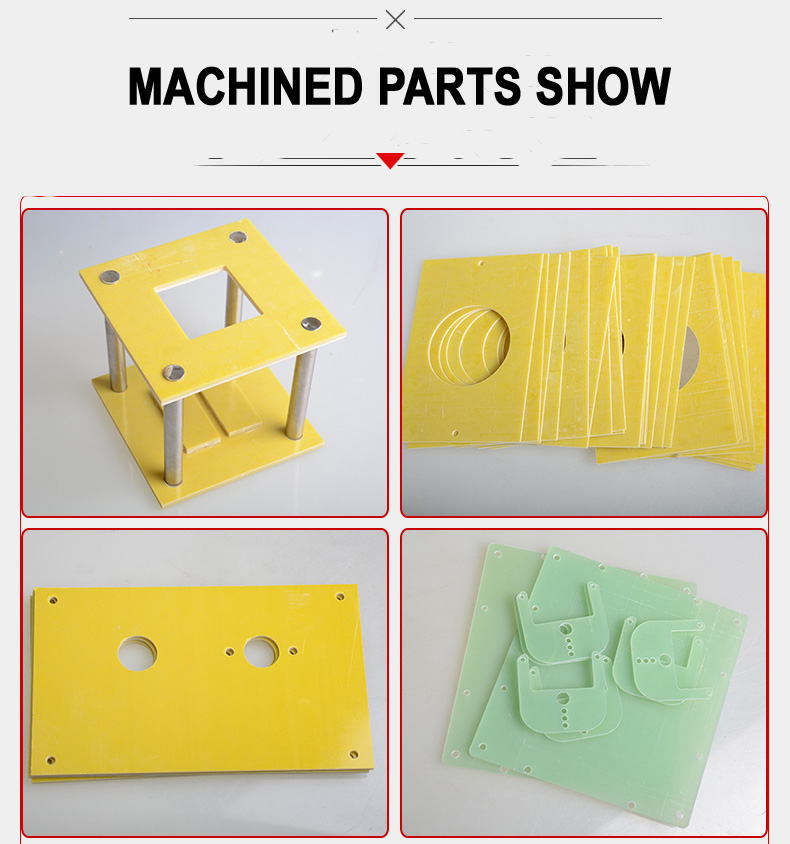

▪       General machine parts and gear, generators, Pads, base, baffle

▪       Generator,transformer, fixture, inverter, motor

▪       Electric insulation component


Epoxy Products:

▪       FR4 Glass Reinforced Epoxy - light green


The most versatile all around laminate, this grade is a continuous glass woven fabric base impregnated with an epoxy resin binder. It has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.


▪      3240 Glass Reinforced Epoxy yellow

This laminated product is formed through heat pressing after electric industry alkali glass cloth dips into the epoxy epoxy resin. It has high mechanic and dielectric performance, and applicable as insulation structural components for electromechanical/electrical equipment, as well as used under damp environmental conditions and transformer oil .

  •  ESD Epoxy Sheet - Black


Composite material made of glass fiber and antistatic and high mechanical strength resin. Using for Precision testing plate, electrical (Electrical) equipment insulation partition board, insulation pad, transformer insulation board, electrical insulation parts, computer drilling pad mold tool, PCB test rack and so on.
