PTFE Rods

  • Stock Color: Natural white
  • Diameter: 1.0mm ~ 250mm
  • Length: 1000mm
  • Lead time: 12 ~ 17 days
  • Product description: PTFE Rods
  • INQUIRY
  • - Other length available, colors can be customized.
  • - Length and diameter's tolerances may vary when manufacturing.

Types Included:

Molded Virgin PTFE, Glassfiber filled PTFE, Carbon filled PTFE


About PTFE:
UHMWPE (also known as Ultra High Molecular Weight Polyethylene) Sheet and Rod products are manufactured from the semi-crystalline polyethylene (PE) family. Chinese UHMWPE Sheet and rods’ maximum molecular weight can reach to 5 million which has a positive impact on material performance in an abrasive environment.PTFE resistant to practically every chemical known to man and has a surface as slippery as ice on ice to which no substance will adhere. PTFE will operate continuously at 260°C in harsh conditions for long periods. It will not degrade when exposed to long term sunlight.
PTFE is available in sheets, rods, tubes and plates in various different grades. Other forms of PTFE available include: glass filled and Skived Tapes.

Advantages:
Outstanding chemical resistance
Superb electrical insulating properties and high dielectric properties
Stability work in temperature range from 260°C down to liquid nitrogen temperatures (-260°C)
And a very low coefficient of friction, resulting in unique non-stick behaviour
Lowest co-efficient of friction
Physiologically inert
Non-toxic

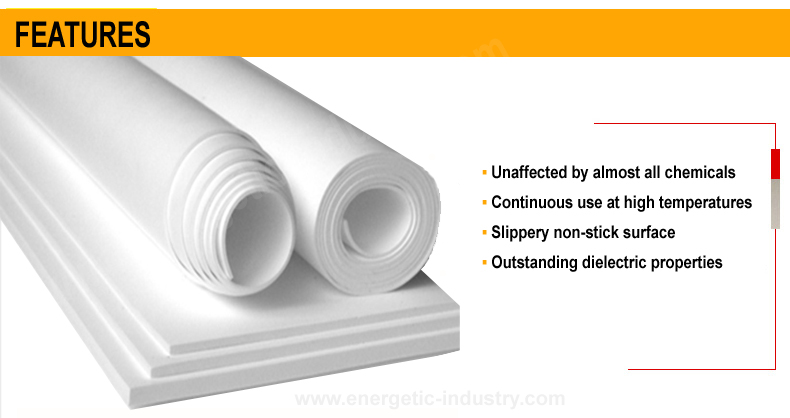

Key Features:
Unaffected by almost all chemicals
Continuous use at high temperatures
Slippery non-stick surface
Outstanding dielectric properties

Applications:
Seals
Seats
Packing
Chevrons
Piston rings, glide rings, lantern rings and back up rings
Slide bearings
Electrical and thermal insulators

PTFE Products:
Molded Virgin PTFE:
Unfilled, natural
15% or 25% Glass filled:
Oxidation and acid resistance, dimensional stability, good electrical properties
25% Carbon filled:
Excellent dry wear resistance, good chemical resistance, lowest electrical resistance, good wear resistance in water applications
